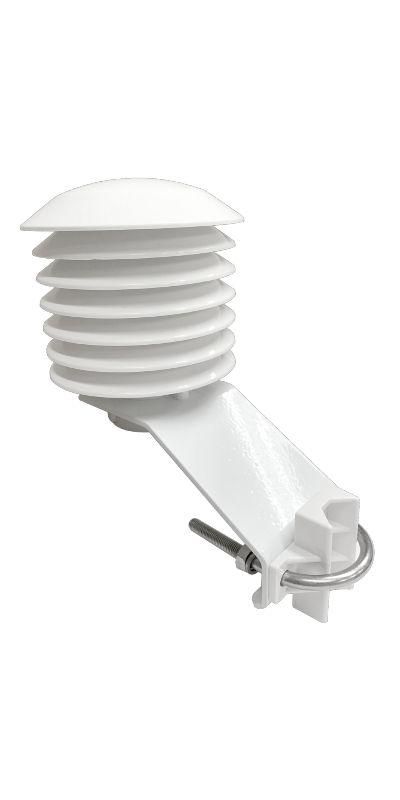

Netvox R72616
The Netvox R72616 is an outdoor wireless logger that that monitors pollution levels (PM2.5), outdoor temperature and humidity.
It can be used to help ensure optimal environmental conditions, at locations and facilities which are not mission critical. The sensor can be configured to monitor for pollution, temperature and humidity thresholds and can trigger text and email alerts whenever these thresholds are being exceeded.
Technical specifications
- Network connectivity: Spark LoRaWAN network
- PM2.5
- Measurement range: 0.3~1.0; 1.0~2.5um
- Effective Range (PM2.5 Standard): 0~500 μg/m3
- Resolution: 1ug/m3
- Maximum Consistency Error
- ±10% @100-500ug/m3
- ±10ug/m3@0-100ug/m3
- Sensor expected lifespan: 3 years
- Measurement range: 0.3~1.0; 1.0~2.5um
- Temperature
- Temperature range: -20°C to +55°C
- Temperature accuracy: ±0.8°C at 25°C
- Humidity
- Measurement range: 0%RH to 100%RH
- Humidity accuracy: ±5%RH at 25°C
- Temperature range: -20°C to +55°C
- Frequency of sampling: 15 minutes, configurable (note: increased frequency of sampling impacts battery lifetime)
- Power source:
- Solar panel
- Battery type: 3 x 3.7V rechargeable lithium battery 18650
- Battery charging time: 6 days in sufficient sunlight
- Battery charge life: 360 hours
- Ingress Protection (shield and battery compartment): IP43 (Resistant to water spraying up to 60° angle. Should not be fully submerged in water.)
- Installation: pole-mounted, at 1-1.5m height
